🔹 Key Highlights

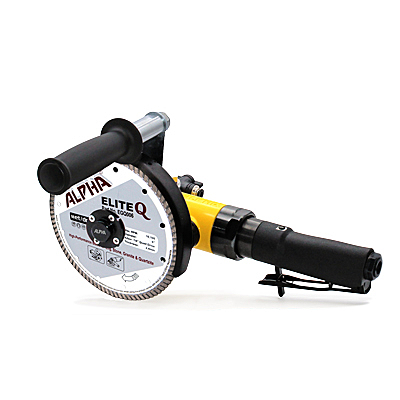

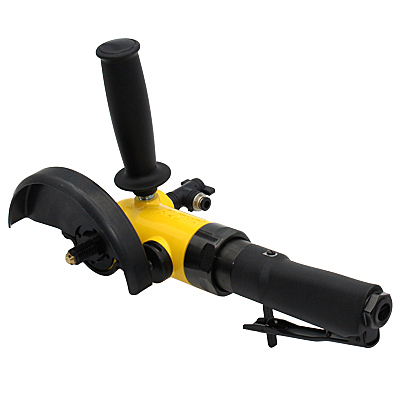

• Ultimate Work Horse – high-speed, high-performance pneumatic angle cutter/grinder for stone fabrication.

• Quad Adapter Center Water-Feed System – delivers direct water flow to both front and back of the blade.

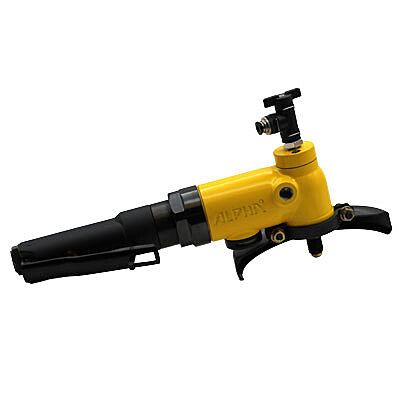

• Reversible Safety Guard – adjustable for left or right blade positioning.

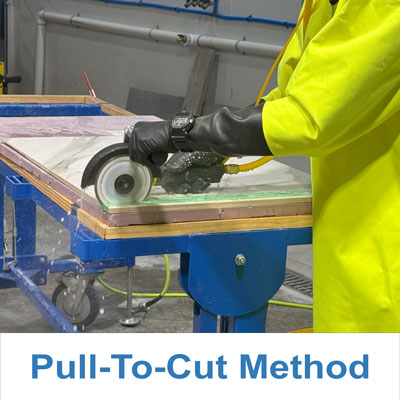

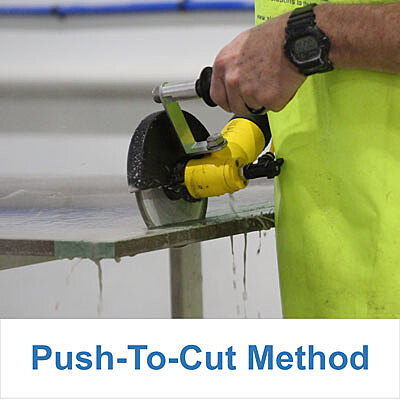

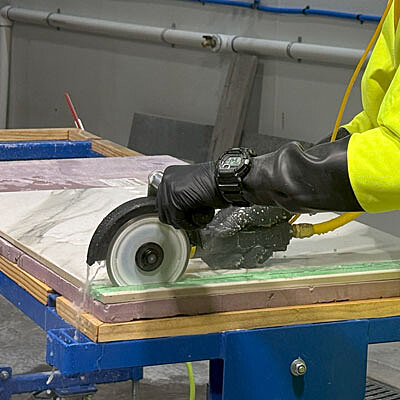

• Multiple Cutting Methods – L-bracket & side handle setup for pull-to-cut, side handle for push-to-cut.

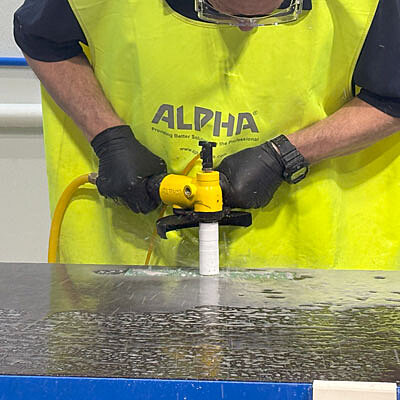

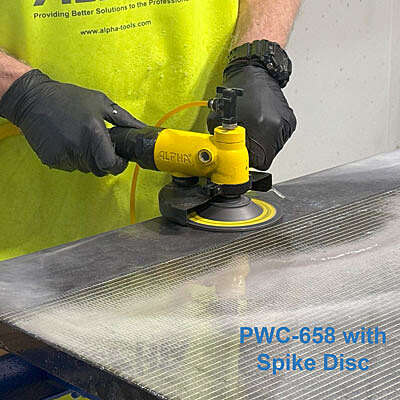

• Flat Grinding Ready – center water-feed system is ideal for grinding applications.

• Enhanced Safety – spring-return throttle prevents accidental start-ups.

• Easy Maintenance – convenient oil port for daily lubrication.

• Durable Design – engineered for demanding fabrication environments.

• One-Year Tool Warranty – reliable coverage for peace of mind.

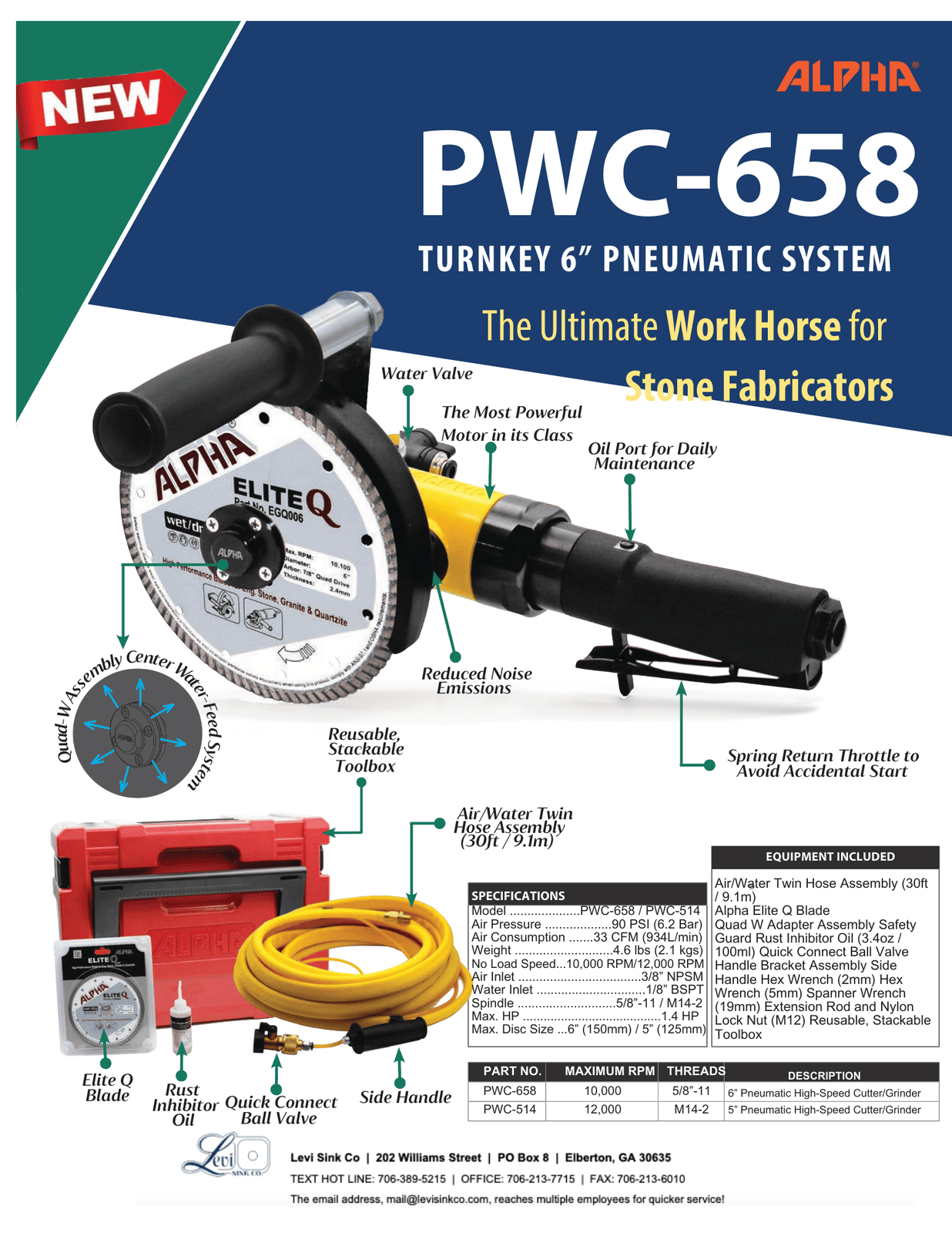

🔹 Product Details (Technical Specs)

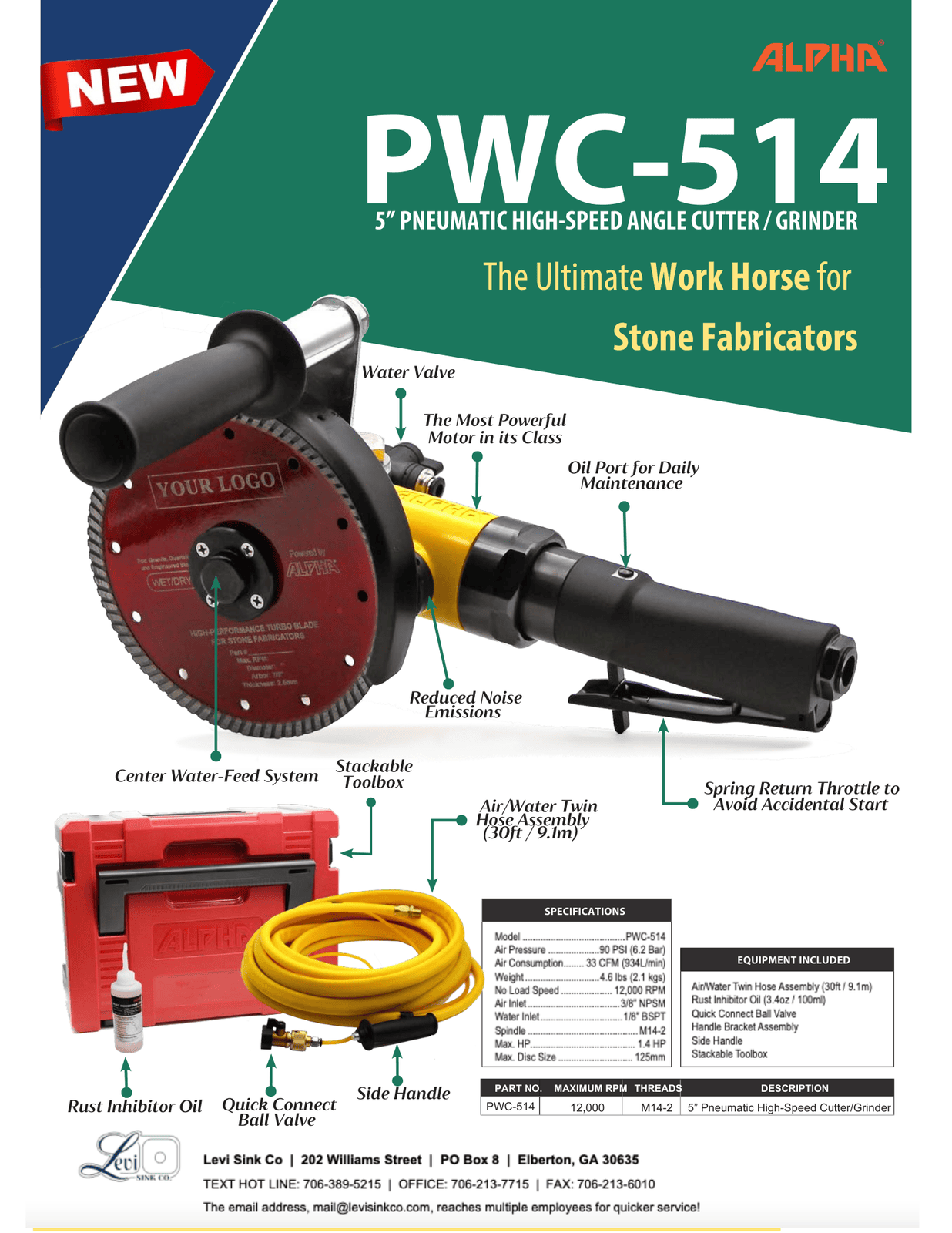

• Model: PWC-658 / PWC-514 / PWC-614

• Air Pressure: 90 PSI (6.2 Bar)

• Air Consumption Max: 33 CFM (934L/min)

• No Load Speed: 10,000 RPM / 12,000 RPM / 10,000 RPM

• Weight: 4.6 lbs (2.1 kgs)

• Length: 11-3/4" (298mm)

• Air Inlet: 3/8” NPSM

• Water Inlet: 1/8” BSPT

• Spindle: 5/8”-11 / M14-2 / M14-2

• Maximum Disc Capacity: 6” (150mm) / 5” (125mm)

• Max HP: 1.4 HP

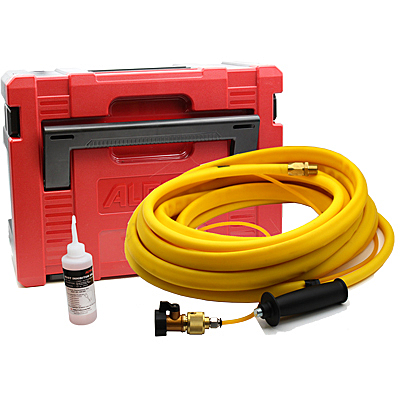

🔹 Equipment Included

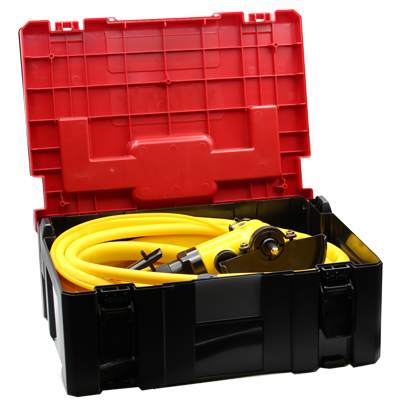

• Reusable, stackable toolbox – 1

• Air/Water twin hose assembly (30ft / 9.1m) – 1

• Alpha® Elite Q Blade – 1

• Rust inhibitor oil (3.4oz / 100ml) – 1

• Quad W adapter assembly – 1

• Safety guard – 1

• Side handle – 1

• Handle bracket assembly – 1

• Quick connect ball valve – 1

• Hex wrench (2mm) – 1

• Hex wrench (5mm) – 1

• Spanner wrench (19mm) – 2

• Extension rod and nylon lock nut (M12) – 1
