WATER PROCESSING CLARIFIERS

Lamellar Waste Water Plant Technical Specifications:

 Plant Model Clarifier VolumeRateSafety ValveTotal Bag Capacity
 TEC754 Lamellar 250 Plant1,320 Gallons66 GPMDN10035 Ft3
 TEC756 Lamellar 400 Plant1,849 Gallons105 GPMDN10035 Ft3

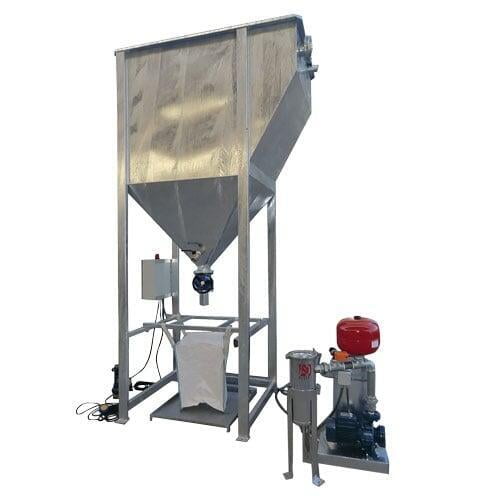

66 GPM Lamellar 250 Stone Water Clarifier

The Lamellar 250 Water Processing Plant is a small sized stone water recycling system that runs at 66 GPM. It is designed to process and clarify waste water produced by a stone fabricators. This 66 GPM Water Plant is a stone water clarification system used for indoor installation as well as outdoor installation.

The 66 GPM Lamellar 250 Water Filtering Plant is normally composed of the following components:

  • Vertical Clarifier
  • Submersible Pump
  • Safety Manual Shutter
  • Filtering Bag
  • Electrical Panel

The components listed above work together to process 66 gallons of water per minute. It consists of either galvanized carbon steel or stainless steel. This water clarifier includes a double filtering bag holder; allowing it to hold 35 cubic ft. Each 66 GPM water clarifier includes the following:

66 GPM Lamellar Stone Water Clarifier

The components that are included on this stone water clarification sysem, are as follows:

  • 1,320 Gallon Clarifier
  • Centrifugal Pump (for Water Extraction)
  • Safety Manual Shutter DN100
  • Butterfly Safety Valve
  • Lamellar Pack
  • Double Filtering Bag Holder
  • 35 Cubic Foot Filtering Bag Volume
  • Submersible Pump

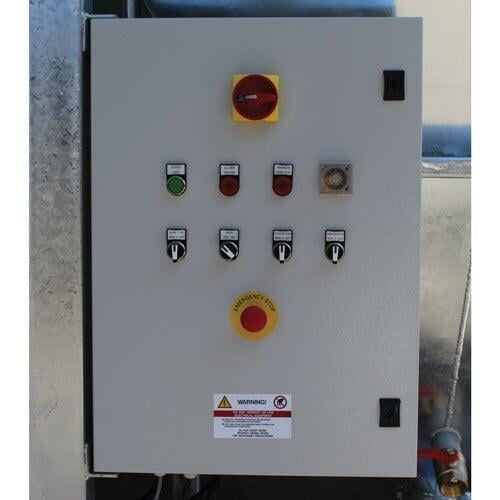

  • Electrical Control Panel

66 GPM Optional Components

As mentioned above, this machine has optional accessories that are available. These options are as follows:

  • Clean Water Storage Tank
  • Launching Pumps
  • Coagulant Unit
  • pH Checking
  • Inverter Technology
  • Fine Filter

CALL OUR OFFICE FOR A QUOTE TODAY!

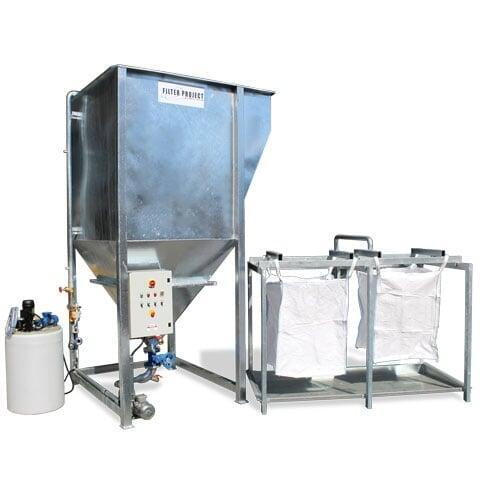

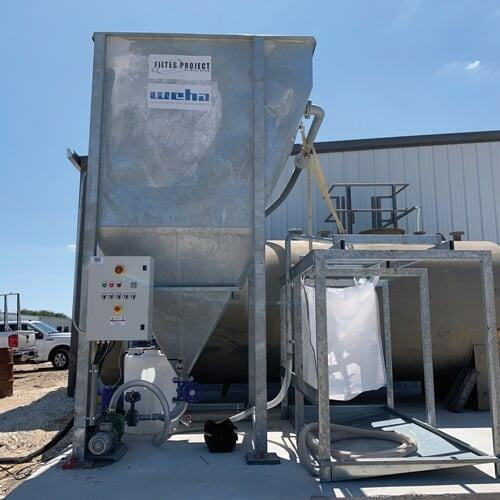

105 GPM Lamellar 400 Stone Water Clarifier

The Lamellar 400 Water Processing Plant is a small sized stone water recycling system that runs at 105 GPM. It is designed to process and clarify waste water produced by a stone fabricators. This 105 GPM Water Plant is a stone water clarification system used for indoor installation as well as outdoor installation.

The 105 GPM Lamellar 400 Water Filtering Plant is normally composed of the following components:

  • Vertical Clarifier
  • Submersible Pump
  • Safety Manual Shutter
  • Filtering Bag
  • Electrical Panel

The components listed above work together to treat 105 gallons of water per minute without flocculant. It also consists of either galvanized carbon steel or stainless steel. Additionally, this water clarifier includes a double filtering bag holder; allowing it to hold 35 cubic ft. Finally, each 105 GPM water clarifier includes the following:

105 GPM Lamellar Stone Water Clarifier

The components that are included on this stone water clarification sysem, are as follows:

  • 1,849 Gallon Clarifier
  • Centrifugal Pump (for Water Extraction)
  • Safety Manual Shutter DN100
  • Butterfly Safety Valve
  • Lamellar Pack
  • Double Filtering Bag Holder
  • 35 Cubic Foot Filtering Bag Volume
  • Submersible Pump
  • Electrical Control Panel

105 GPM Optional Components

As mentioned above, this machine has optional accessories that are available. These options are as follows:

  • Clean Water Storage Tank
  • Launching Pumps
  • Coagulant Unit
  • pH Checking
  • Inverter Technology
  • Fine Filters

CALL OUR OFFICE FOR A QUOTE TODAY!
