WIRE SAWS & DRILLING MACHINES FOR QUARRIES

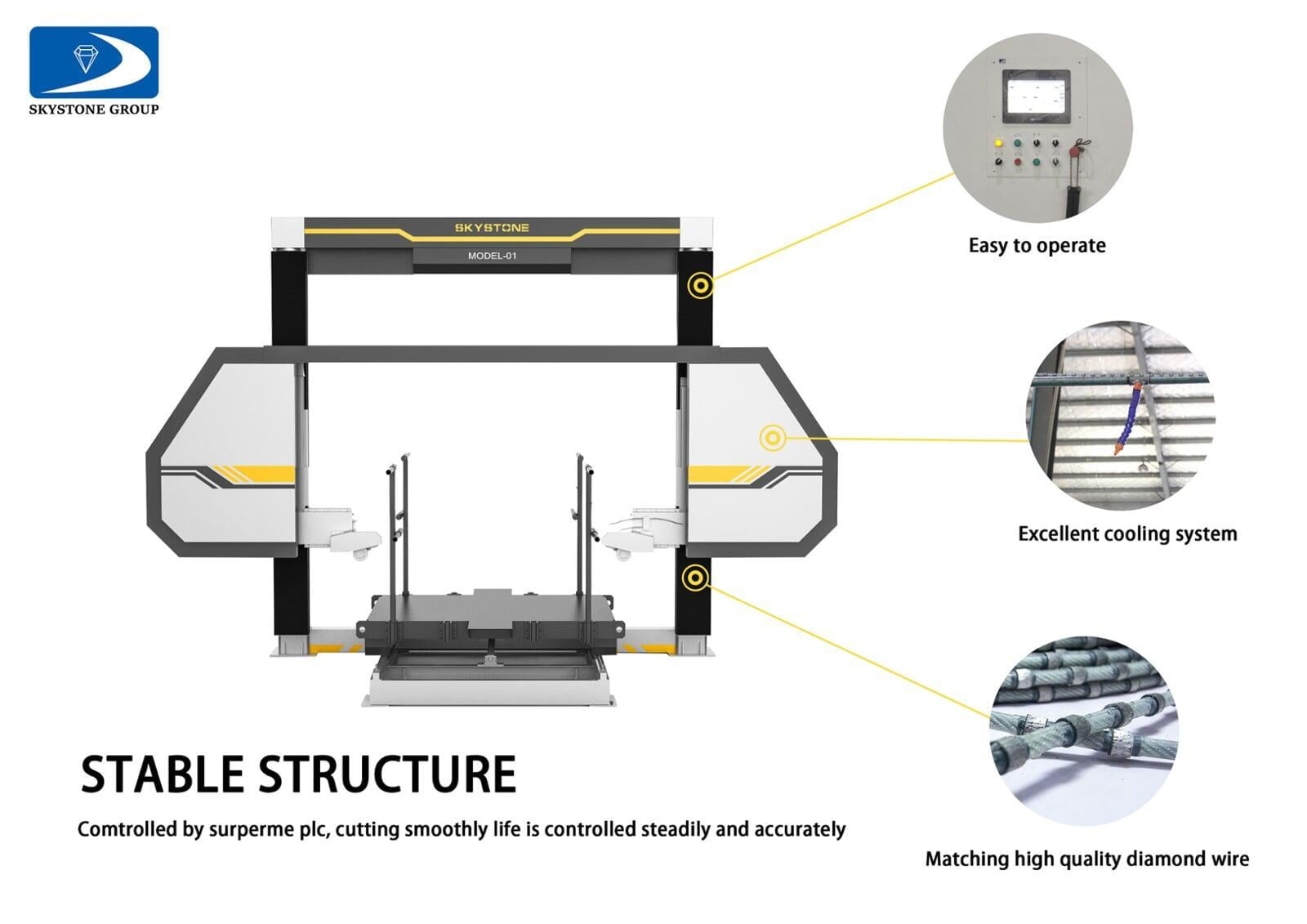

Wire Saw Machine

Equipment components:

Our machines equipped with famous international components: such as Siemens motors, Siemens PLC, Schneider & ABB relays, Yaskawa inverters to ensure high stability and low failure rate.

Performance

High efficiency: The equipment adopts dual frequency conversion system for high cutting efficiency, stable operation, and long service life of wire, which cutting speed can exceed 30% of other suppliers.

Easy operation

The equipment is easy to operate which can achieve automatic cutting, and wireless remote control.

Low-cost maintenance

Modular design is adopted, which is extremely convenient for maintenance and replacement of parts.

Safety

The equipment has protection functions for wire broken, machine overload, lack of phase, over-rotated limit etc.


TSY-75G $28,000 FOB China

TSY-55G $25,000 FOB China

TSY-37G $20,000 FOB China

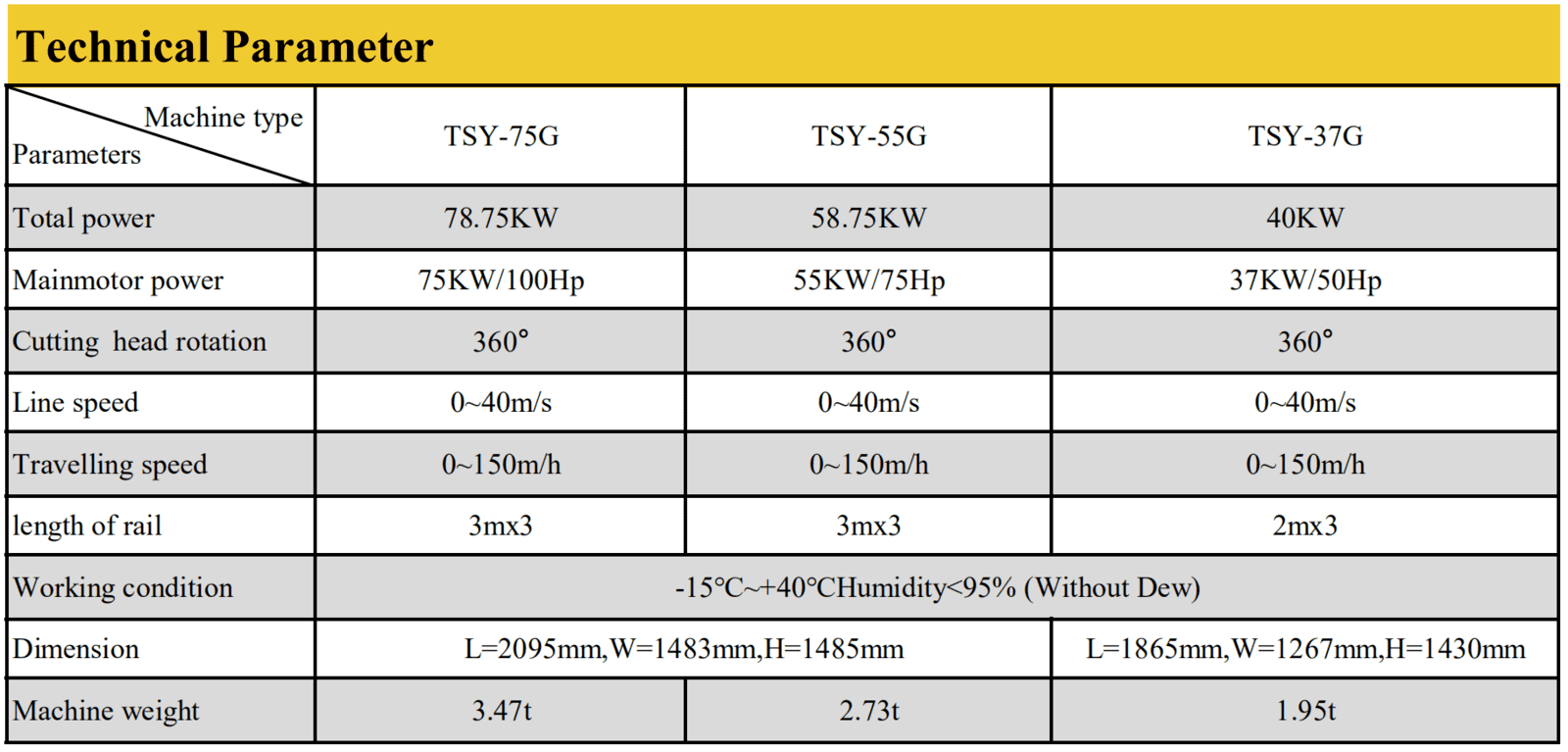

Click for Technical Specs

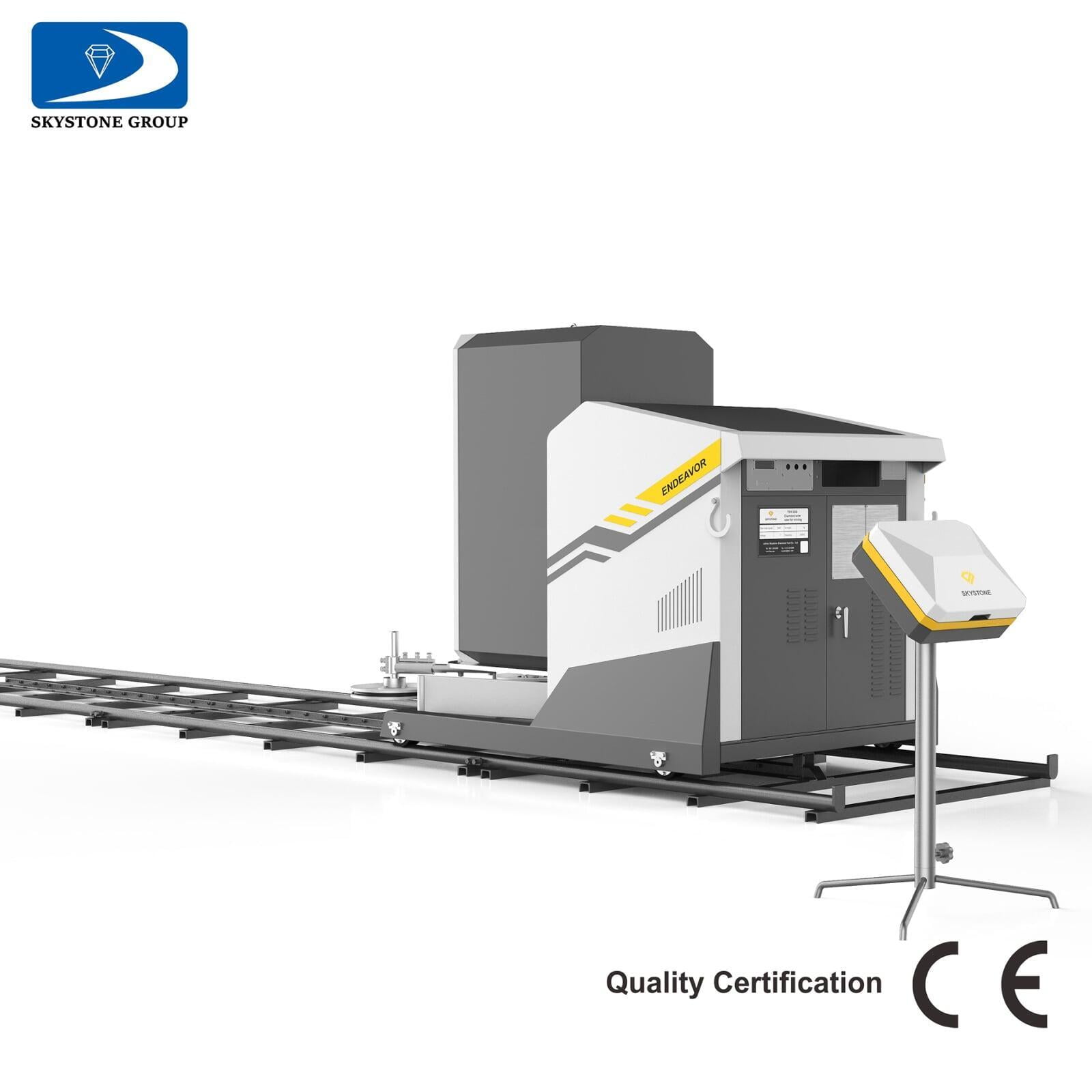

Mono Wire Saw Machine

This machine was designed for dressing different sizes and hardness blocks.  It owns advantages of high efficiency, easy operation, low cutting cost and pollution.  The system is controlled by supreme PLC, making cutting and running more smooth and guarantee the high cutting efficiency.  Linear speed, cutting current, cutting position, working time, and tension could be real time reported.

European safety design standards and Yaskawa converter, which allows speed change from 1 to 200cm/h.  It has a safety controller and protective function for wire breakage.  Lift is driven by servo motor which controls steadily and accurately.  The motor could also output pow frequency.  Cutting height and cutting thickness could be set as demanded.


$60,000 FOB China


Click for Technical Specs

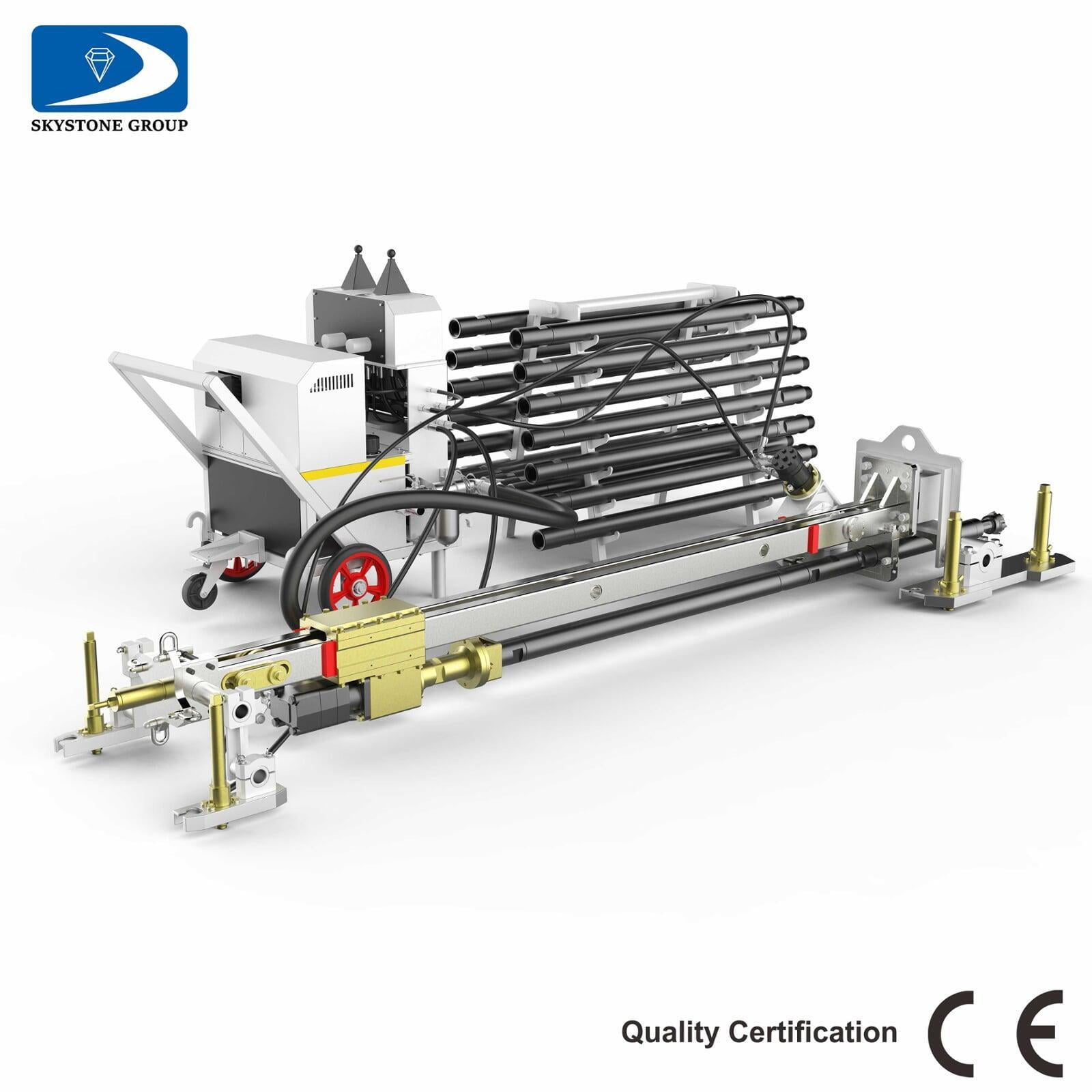

Drilling Machine for Quarry

TSY-PH90A DTH drill is new model we developed specially for stone quarry. It is jointly controlled by pneumatic and hydraulic with highly efficiency and less air consumption; light weight, easy installation and transportation; lower energy air consumption and high efficiency ensured by high quality pneumatic components; high hoisting ability; particular mechanical devices for tub screwing and discharging to reduce the labor intensity: particular design for guiding drilling.


$15,000 FOB China


Click for Technical Specs
