Bracket - 12" Overhang - 3pk
These 12 inch stone bracket replaces corbels on a variety of stone materials including:
- Quartz
- Granite
- Quartzite
- Concrete
- Onyx
- Limestone
- Marble
- Soapstone
Uses for 12" Counter Top Support Brackets
Basically, all types of natural and engineered stone materials can be supported with these brackets. Great to keep in the truck for stone installation projects that incorporate a modern (clean) appearance.
Support Bracket Overview
The Weha 12" Counter Top Support Brackets are made to be placed between 18-24" apart, most installations require 3 braces. So our product has conveniently packed the 12 counter top support braces in packs of 3.

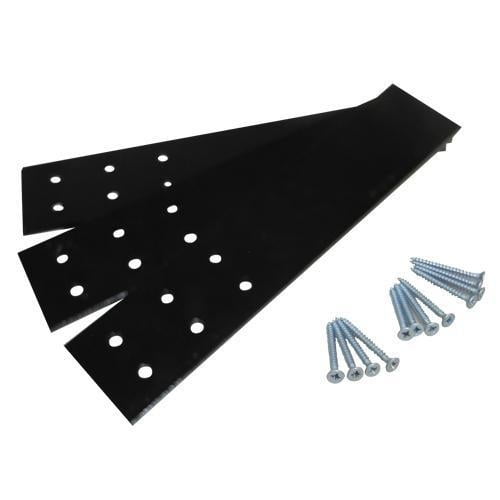

This 12" Counter Top Support Bracket. 12"x 2-1/2" x 1/4". Set of 3 plus 12 2" Screws. Everything fabricators need to support engineered stone like quartz and solid surface. Even concrete countertops can be braced with this set of brackets.
Counter Top Metal Support Bracket Features
Additionally 12 2" wood screws also come with this set of 3 stone support braces. This gives you 4 screws per counter top brace bracket. Each set of 3 12" countertop support braces are shrink wrapped with the screws for convenience. This allows the installer to grab a set and take it to the install without scratching the braces or the braces sliding around in the truck, and not having to remember to grab the screws. Simply take into the kitchen, open the pack, and everything is provided for a quick, scratch free install.
Each 12" Countertop Support Brace bracket comes with 6 countersink holes. The provided screws will finish flush with the support brace. Each 12 Counter Top Support Brace Bracket is powder coated gloss black for a high end black polished finish.
One edge of the counter top brace is flat and the other end is back beveled with slightly rounded corners. There are no sharp edges for the homeowner to scratch or cut themselves. And the bevel provides a nice touch transition from the bracket to the stone.
Weha also decided to go with a full 1/4" thick counter top brace bracket. The 3/16" brackets are just too flimsy and allows too much flex in the brace. However, the 1/4" thick counter top bracket provides a solid stiff bracket that will fully support the overhang without flexing.
Weha produces the Counter Top Support Bracket at 2 1/2" wide. This width gives plenty of structural support. And when placed at seams it gives a full 1 1/4" wide support on each piece of stone.
Uses for 12 Inch Support Braces
Weha countertop support braces can be used with many stone types; granite, marble, soapstone, onyx, engineered stone, quartz, quartzite, concrete, and all substrates.
All Weha counter top support brackets provide the correct and proper support needed for granite and stone overhangs.
Packaging Details
The 12" countertop support bracket packs come packaged for fabricator convenience and ease of installation. The packaging is as follows:
