Aardwolf Slab Rack Kit, 16-63" Poles
$2,228.77
Call For Availability

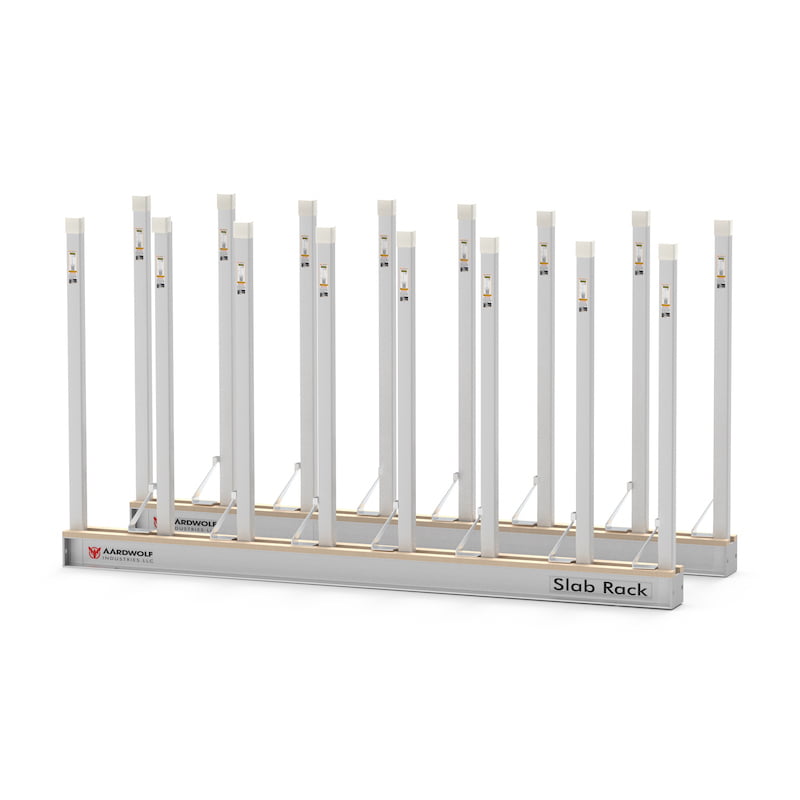

Aardwolf provides the Slab Rack Kit, which contains a pair of galvanized steel rails 3 meters long, with galvanized square steel tube posts and steel post bases. The square post can be positioned anywhere along with the rack. All posts are manufactured from square tube steel with a minimum yield strength of 345Mpa, ensuring safety for the vertical storage of slab bundles.
Features
- The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the slab thickness and dimensions.
- Aardwolf has developed a simple calculator specifically for the users to calculate the slab storage capacity.
- The slab rack rail is combined with sixteen steel tube posts, which have a height of 1600mm and the steel post base 1600-1800mm for storing.
- This rack is the best solution for storing, and it offers cost-saving and economic effects for users.
Specifications
Qty | Metric
(mm-kg) | Imperial
(inch-lb) | |
| Galvanized steel rail | 2 | 2979x164x165 | 117.3"x6.4"x6.5" |
| Rack height | 165 | 6.5" | |
| Square hole | 52x52 | 2"x2" | |
| Increment | 57 | 2.2" | |
| Square tube post | 16 | 50x50x1600 | 2"x2"x63" |
| Steel post base | 14 | 1600x1800 | 63"x70.9" |
| Posts wall thickness | 5 | 0.2" | |
| Square rubber cap | 16 | 52x52 | 2"x2" |
| Timber battens per rail | 50x25 | 2"x1" |
