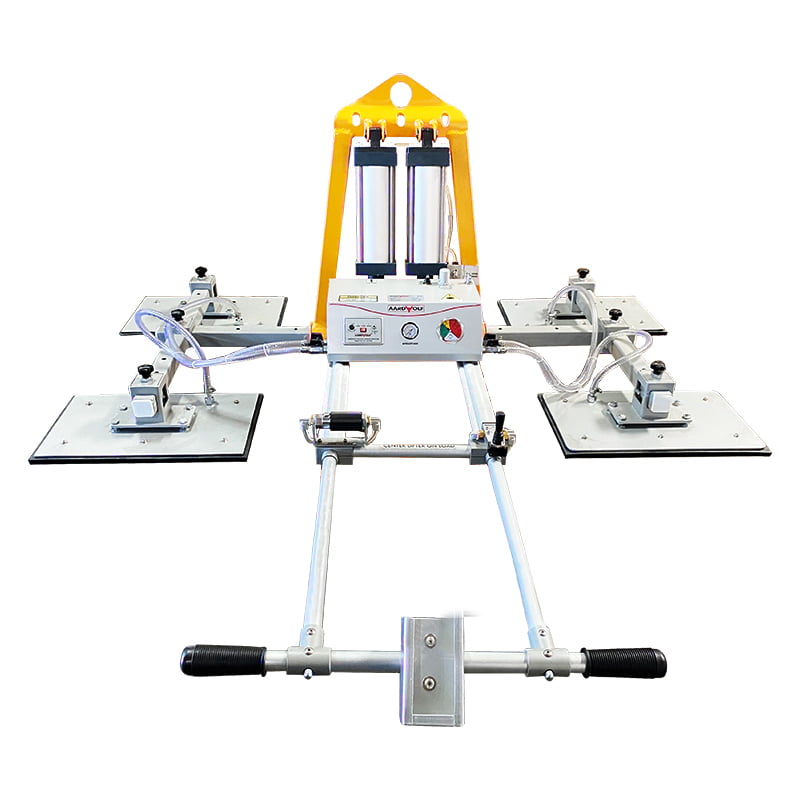

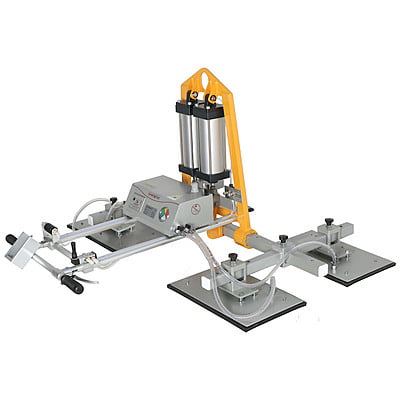

Aardwolf Vacuum Lifter - 2204 lbs
$4,312.70
Call For Availability
This vacuum lifter is designed to lift smooth or rough marble and granite slabs. Featuring rugged construction with the ability to lift and tilt materials. Powered by compressed air.
Features
- Pneumatic vertical-horizontal tilting from 0 to 90°.
- Vacuum tank ensuring safe pickup in the event of a sudden power break to the vacuum pump.
- Acoustic and visual alarm system powered by a rechargeable 3.7V battery.
- High-strength extruded aluminum handle encase air and vacuum lines.
- Slide valve with ON/OFF position for attaching and releasing of material.
Specifications
Metric
(mm-kg) | Imperial
(inch-lb) | |
| Number of pad | 4 | - |
| Pad size | 520x320 | 20.5"x12.6" |
| Working load limit | Vertical: 500 Horizontal:1000 | 1102 2204 |
| Net weight | 109 | 240 |
| Gross weight | 150 | 331 |
| Packaging dimensions | 1680x430x960 | 66.1"x16.9"x37.8" |
- Battery information for the alarm system
| Power supply | 3.7V Lipo battery |
| Battery capacity | 2000 mAh x 1 |
| Standby time | 720 hours |
| Charging cycle | 1000 times |
| Charging time | 2 hours |
| Adapter | DC 5V-1A |
| Non-stop working time | 7 hours |
| 6-month warranty | - |
- Compressed air requirement
| Air consumption | 180 liters/minute |
| Supply air pressure | 5 bars (72 psi) |
